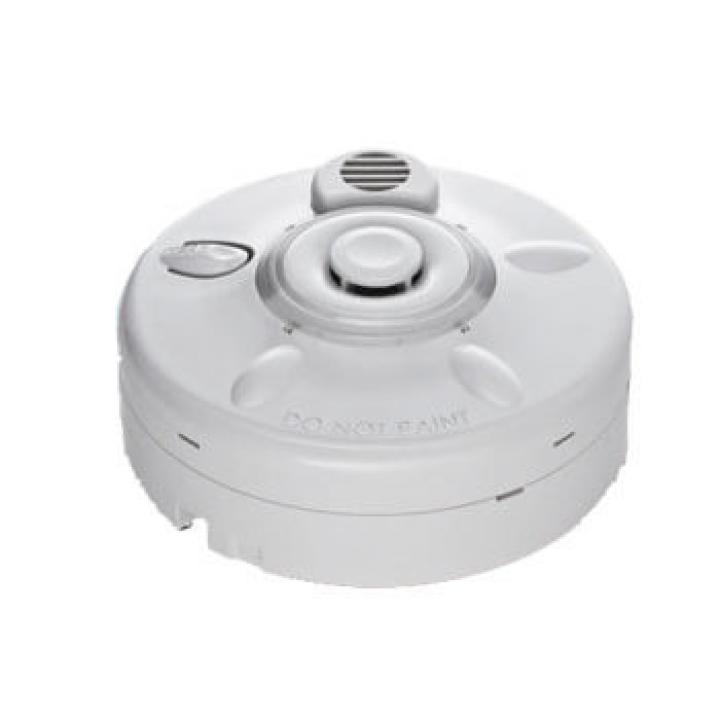

Horing Lih AH-0822 Gas Detector

Gas Detector

Fire Alarm (FA) System
  • The AH-0822 features advanced technology,high accurate detection,low power-consumption and fast reaction time. It can detect natural gas & propane gas. Built- in buzzer & LED indicator alert by sounding & flashing.
  • Sounding & flashing in alarm status,the green LED is lit during monitoring & the red LED flashes in alarm status.
  • Dual power input: 12VDC & 24VDC operation in the same unit. No adjustment is required.
  • Optional 110VAC & 220VAC adapter is available.

Product PDF
Specifications
Model AH -0822
Power Source 24V DC 12V DC
Standby Current 35~40mA 65~70mA
Alarm Current 75~80mA 90~95mA
Warm-up Period About 35 Seconds
Alarm Sound 90dB/M and above
Sensitivity 0.05 ~ 0.30%
Detection Type Natural Gas and Propane Gas
Ambient Temperature -10°C ~+ 55°C
Dimensions 102mm(Dia.)x40.5mm(H)
Weight About 130g
