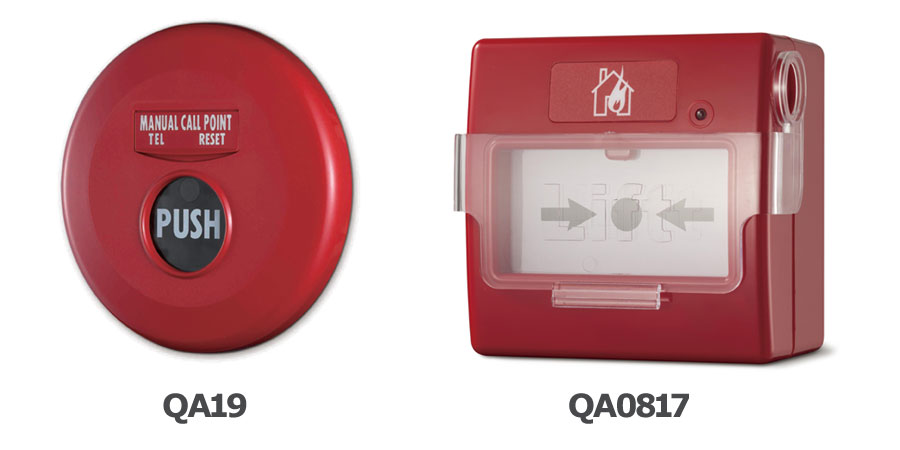

Horing Lih QA Series Addressable Manual Call Points

Model	QA19	QA0817
Purpose	Signal will directly sent to panel
System Connected	Control panel zone
Input Source	Zone signal
Output Contacts/Load	N/A
EOL Resistor	10kΩ
Address Coding	Binary
Operating Voltage	16 ~ 32V DC
Alarm Current	6mA
Quiescent Current	650 ~ 850μA
Ambient Temperature	0°C ~ +50°C
Material	Fire-proof plastic
Color	Red
Dimensions(mm)	140(Dia.) x 45(H)	87.5(H) x 87.5(W) x 54(D)
Remarks	–	Protection Cover is optional
