Horing Lih Fire Alarm Bell and Indicating Lamp

Fire Alarm Bell and Indicating Lamp

Fire Alarm (FA) System

AH-0218 Fire Alarm Bell 6″

  • High efficiency low current consumption on 24VDC motorized bells.
  • Terminal will accepts 2.5mm cable.
  • Simple installation via multi-fixing base plate for all types of location.
  • Fitted with two series diodes for fault monitoring.
  • Option of customized disc printed with company name and logo.
  • 12VDC bells are also available.

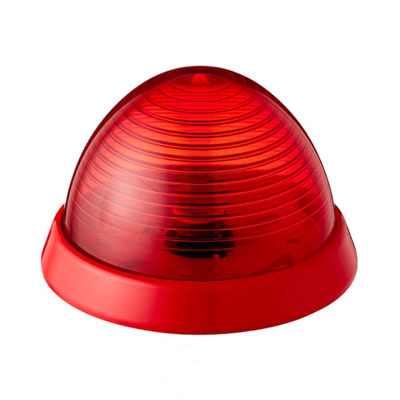

AH-9719 Fire Indicating Lamp

  • Uses white bulb (or low current LED ) and installed inside the red lamp cover.
  • When lit, it is clear visible within 10 meters.

Product PDF
Features
AH-9719
Model AH-9719
Dimensions 90mm(Dia)x70mm(H)
Consumption Current 24V DC 60mA/LED 20mA
Bulb 30V/2W bulb or LED
Material Fire-proof plastic
Weight About 70g
Specifications
Model AH-0218
Dimensions Ø6″(152mm) x 56mm(H)
Voltage 24VDC
Current 25mA
Sound Output 93dB@1M
Movement Motor, Pinion and striker
Movement Features DC Motor, acetal gear wheel, steel striker
Gong Steel, secured with phillips screw
Base Plate Molded black polycarbonate
Material Steel Plate
Weight About 850g
