Horing Lih AH-03127 Electronic Sounder and Beacon

Electronic Sounder and Beacon

Fire Alarm (FA) System

Electronic Sounder and Beacon

Characteristics

  • 32 signal tones selectable by Dip switch.
  • High sound output with low current consumption.
  • High efficiency lens for maximum light output.
  • Volume Control as standard.
  • Two sets of IN and OUT terminals, easy for installation.

Product PDF
Specifications

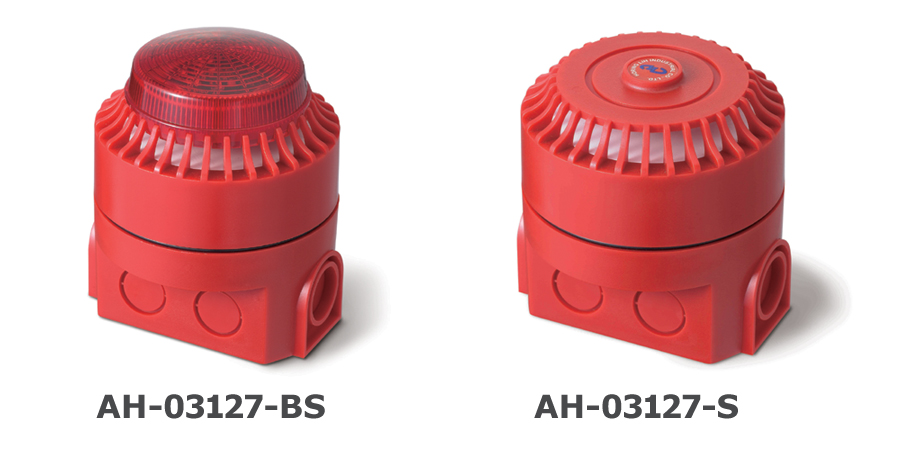

Model AH-03127-S AH-03127-BS
Voltage 24V DC
Current Consumption 24V DC (tone 3) 14.5mA
Sound Output 24V DC    dB(A) at 1 meter Max. 114
Volume Control 0 to -20dB adjustment
Ingress Protection IP44
Ambient Temperature -25°C ~ +80°C
Material ABS plastic
Dimensions 92.5mm(Dia.) x 94mm(H)  92.5mm(Dia.) x 110mm(H)
Weight 254g 278g
