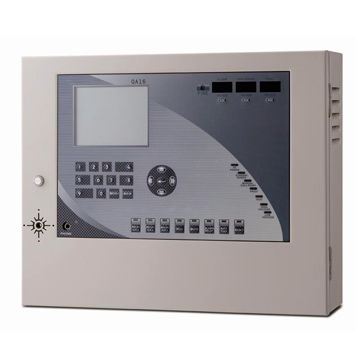

Horing Lih QA-16 Addressable Fire Alarm Control Panel

Each loop can connect up to 250 addressable devices. Maximum networking are 32 loops and total addressable points are 8000.
Large LED Screen ( 40×15 lines ) allow more events to be displayed on the same screen.
Loop Device can be set up to be temporarily isolated.
Individual loop modules test features to save time on panel test.
On-board Self-test features for simulated alarm output.
Easy system programming through PC to panel.
Events log can store up to 2030 events.
Specification Optional thermal printer that can printout complete panel status.

Model	QA16
Power	220V AC 50/60Hz *Others also available
Battery Capacity	24V DC 4Ah
Charging Voltage, Current	26V DC 100~400mA *With auto adjustment function
Zone Voltage, Current	24V DC short circuit under 5V 30mA
System Capacity	250 devices/1 loop *Expandable for site requirement
Exterior Resistance	Round-trip under 40Ω
Transmitting Method	Digital series transmitting
Accumulation Time	0~40 seconds *Other options available
Main Sound	85dB @1M
# of conventional heat detectors connected	No limit *Except electronic-type
# of conventional smoke detectors connected	30/zone *Horing Lih’s product
Material	1.6mm steel plate
Color	Pearl gray
Dimensions (mm) H x W x D	1~4 loop: 400 x 500 x 130 5~8 loop: 600 x 500 x 150
