The KR Series is the main accessories line of external wiegand readers for all our access control devices. With an elegant and robust design, they are easy to connect and install, and o er the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up to 10cm in the E series case and up to 5cm in the M series case. The fact that this series is waterproof, and the operating temperatures can range from -20º to +65º, it is the ideal solution for outdoor installation. Also they can be connected with our C3 controllers.

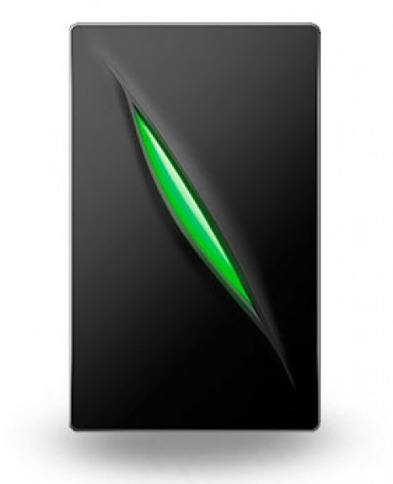

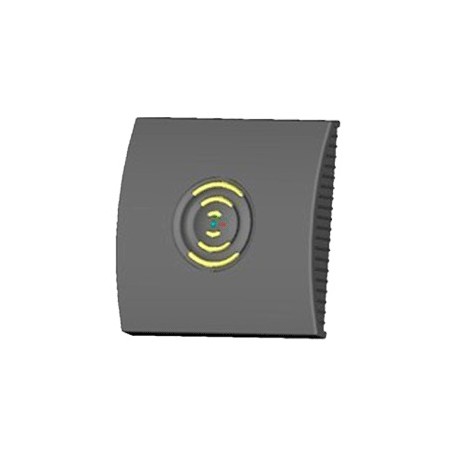

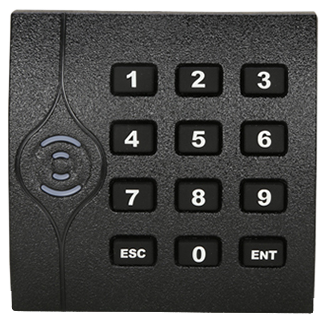

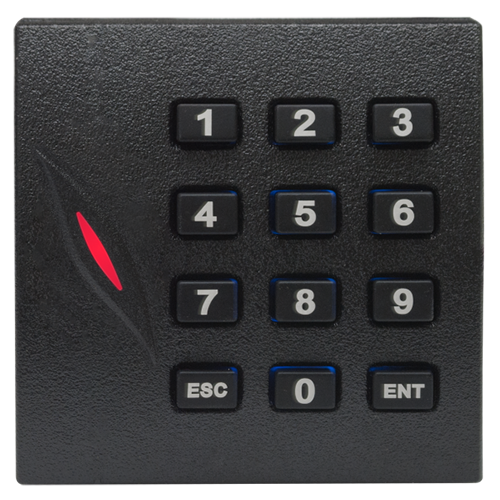

ZKTeco KR Series Wiegand Readers
Wiegand Readers
Access Control
Product PDF
Features
Easy to install
125KHz Proximity/13.56MHz Mifare Card Reader
Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
26/34bit Wiegand (default)
Easy to install on Metal Door Frame or Mullion
External LED Control
External Buzzer Control
Indoor / Outdoor Operation
Solid Epoxy Injection
Waterproof IP65
Reverse Polarity Protection
Elegant and robust design
Specifications
| Model | KR100E/M | KR101E/M | KR102E/M | KR200E/M | KR201E/M | KR202E/M | KR300 |
| Read Range | KR100E Up to 10 CM KR100M Up to 5 CM | KR101E Up to 10 CM KR101M Up to 5 CM | KR2102E Up to 10 CM KR102M Up to 5 CM | KR200E Up to 10 CM KR200M Up to 5 CM | KR201E Up to 10 CM KR201M Up to 5 CM | KR202E Up to 10 KR202M Up to 5 CM | CM Up to10CM |
| Reading time ( Card ) | 300ms | 300ms | 300ms | 300ms | 300ms | 300ms | 300ms |
| Power | DC 6-14V / Max.70mA | DC 6-14V / Max.70mA | DC 6-14V / Max.70mA | DC 6-14V / Max.70mA | DC 6-14V / Max.70mA | DC 6-14V / Max.70mA | DC 6-14V / Max.70mA |
| Output Card Format | 2ea (External LED Control, External Buzzer Control) | 2ea (External LED Control, External Buzzer Control) | 2ea (External LED Control, External Buzzer Control) | 2ea (External LED Control, External Buzzer Control) | 2ea (External LED Control, External Buzzer Control) | 2ea (External LED Control, External Buzzer Control) | 2ea (External LED Control, External Buzzer Control) |
| Output Pin Format | 8 bits | 8 bits | |||||
| LED indicator | 2 Color LED Indicators (Red and Green) | 2 Color LED Indicators (Red and Green) | 2 Color LED Indicators (Red and Green) | 2 Color LED Indicators (Red and Green) | 2 Color LED Indicators (Red and Green) | 2 Color LED Indicators (Red and Green) | 2 Color LED Indicators (Red and Green) |
| Beeper | yes | yes | yes | yes | yes | yes | yes |
| Operating temperature | “-20° to +65°C” | “-20° to +65°C” | “-20° to +65°C” | “-20° to +65°C” | “-20° to +65°C” | “-20° to +65°C” | “-10° to +70°C” |
| Operating Humidity | 10% to 90% (relative humidity non-considered) | 10% to 90% (relative humidity non-considered) | 10% to 90% (relative humidity non-considered) | 110% to 90% (relative humidity non-considered) | 10% to 90% (relative humidity non-considered) | 10% to 90% (relative humidity non-considered) | 10% to 90% (relative humidity non-considered) |
| Color | Black | Black | Black | Black | Black | Black | Black |
| Material | ABS+PC with texture | ABS+PC with texture | ABS+PC with texture | ABS+PC with texture | ABS+PC with texture | ABS+PC with texture | ABS+PC with texture |
| Dimension: (WxHxT) mm | 116x75x17.3 | 77.5×42.8×16.5 | 86x86x16.3 | 86x86x16.8 | 84.5x44x16.8 | 87x86x22.4 | 77,5×42,8×16.5 |
| Weight | 120g | 50g | 120g | 110g | 55g | 126g | 50g |
| Index of Protection | IP65 | IP65 | IP64 | IP65 | IP65 | IP64 | IP65 |

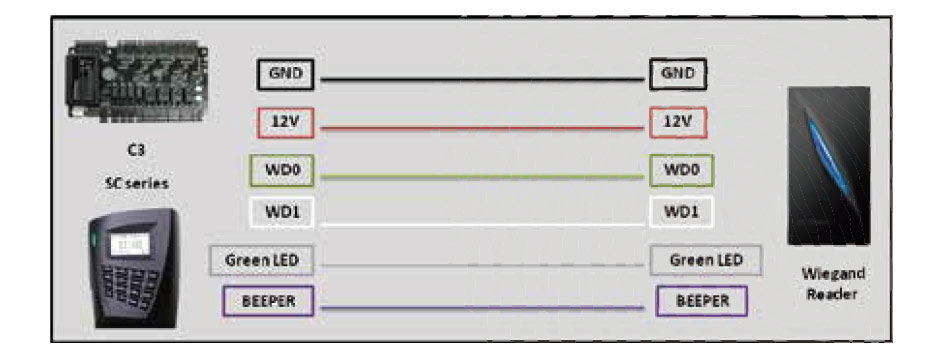

Installation
