Key features
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night, Smart IR
- EXIR technology, up to 40m IR distance
- IP66 weatherproof
Available Models
- DS-2CE16D0T-IT1
- DS-2CE16D0T-IT3
- DS-2CE16D0T-IT5

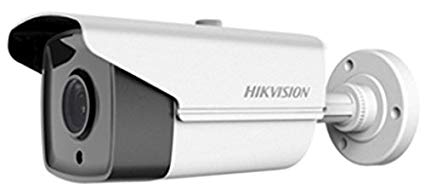

HIKVISION DS-2CE16D0T-1T1 Bullet Camera
HD1080P EXIR Bullet Camera
Security Camera CCTV System
Features
Specifications
| Model | DS-2CE16D0T-IT1 | DS-2CE16D0T-IT3 | DS-2CE16D0T-IT5 |
| Camera | |||
| Image Sensor | 2MP CMOS Image Sensor | ||
| Signal System | PAL/NTSC | ||
| Effective Pixels | 1920(H)*1080(V) | ||
| Min. illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | ||
| Shutter Time | 1/25(1/30)s to 1/50,000s | ||
| Lens | 2.8mm, 3.6mm, 6mm optional | 3.6mm(2.8mm,6mm,8mm,
12mm,16mm optional) |
3.6mm(6mm,8mm,12mm,
16mm optional) |
| Angle of View: 103°(2.8mm),
82.2°(3.6mm), 54°(6mm) |
Angle of View: 103°(2.8mm),
82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.2°(3.6mm), 18.8°(6mm) |
Angle of View: 82.2°(3.6m
m),54°(6mm), 37.7°(8mm), 24.2°(3.6mm), 18.8°(6mm) |
|
| Lens Mount | M12 | ||
| Day & Night | ICR | ||
| Angle Adjustment | Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360° | ||
| Synchronization | Internal synchronization | ||
| Video Frame Rate | 1080p@25fps/1080p@30fps | ||
| HD Video Output | 1 Analog HD output | ||
| S/N Ratio | ＞62dB | ||
| Operating Conditions | -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing) | ||
| Power Supply | 12 VDC±15% | ||
| Power Consumption | Max. 4W | Max. 4W | Max. 6W |
| Protection Level | IP66 | ||
| IR Range | Up to 20m | Up to 40m | Up to 80m |
| Dimensions | 86.22×82.05×220.13mm(3.39”×3.23”×8.67”) | ||
| Weight | 430 g (0.95 lb) | ||
