Function
- Paging and calling a household unit or a security guard station
- Various verification methods(password and RFID card)

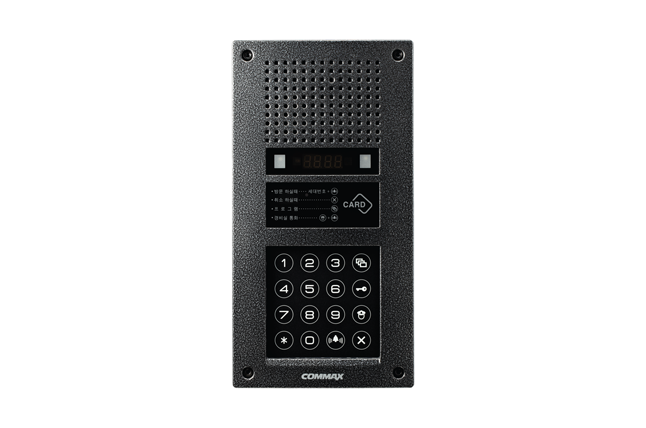

COMMAX LOBBY PHONE DRC-900LC/RF1
Lobby Phone
Video Door Phone System
Specifications
| Power source | DC 12V, 1A |
| Mount Type | Surface-mounted type |
| Wiring | UTP(Cat. 5e) |
| RFID Card | 13.56MHz(Optional) |
| Angle of view | Horizontal: 47°, Vertical: 35° |
| Lighting | Color: white LED×2 |
| Rain-shield(mm) | 140(W)×260(H)×65(D) |
| Power consumption | Standby: 200mA, Maximum: 500mA |
| Operating temp. | -30℃~+60℃ |
| Distance | Max. 300m VD-103(N) |
| Image sensor | C-MOS(Pin-hole type) |
| Min. Illumination | 3 Lux(Up to 300mm from camera to an object) |
| Dimension(mm) | 136(W)×260(H)×36(D) |
